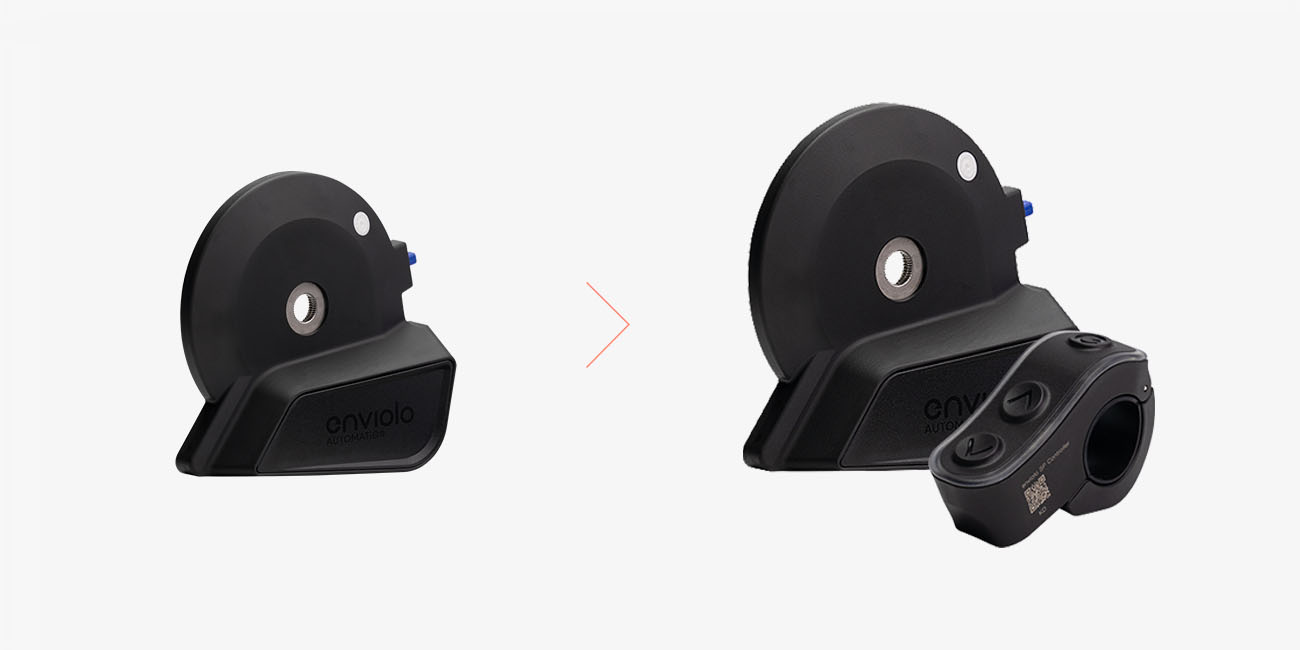

This retrofit guide explains how to properly assemble an optional CLiQ Pro controller and pair it with your newly assembled AUTOMATiQ hub interface. This is part of a series of 5 retrofit guides to install the new AUTOMATiQ.
Retrofit guides index
List of all AUTOMATiQ retrofit guides, part by part:
-
Intro - Hub interface assembly options
- Part 1.A - Assembly from Automatic+ or Harmony H|sync
- Part 1.B - Assembly from Automatic or Harmony
- Part 1.C - Assembly from Manual
- Part 2 - Rear wheel assembly
- Part 3 - AUTOMATiQ configuration
- Part 4 - AUTOMATiQ calibration
- Part 5 - Optional CLiQ controller assembly and pairing
Step-by-step instructions
1 - Assemble the controller
Tools
- Torx T20 wrench
Assembly instructions
- Assemble the right-hand grip and brake lever onto the handlebar according to the manufacturer’s instructions.
- Slide the clamp over the handlebar.
- Position the controller such that the button is positioned slightly under and comfortable for thumb controls.
- The enviolo CLiQ Pro controller can be mounted to either the right or left side of the handlebar.
- Tighten it to 1 Nm with a Torx T20.
2 - Pair the controller
Tools
- A mobile device with the AUTOMATiQ App installed:
- Android 8 or higher - Download from Google Play Store
- iOS 13 or higher - Download from Apple App Store
Pairing instructions
- Start the enviolo App. After the welcome screen on the App disappears you will see a connection request.
- Power on your drive system.
- Push the button on the front side of the hub interface and hold it for 5 seconds. The button will start blinking blue. The device should now appear on your screen.
- Click on your preferred device to start the pairing process. After pairing is complete, you will see the menu screen.
- Click on info, at the bottom of the app, and then disconnect.
- Close the enviolo app.
- Initiate the pairing mode on the hub interface again.
- Press and hold the top button on the controller for more than 8 seconds. Once the LED lights are continuously in blue for 1 second, the device is paired.
Battery
The CliQ Pro uses a standard CR1/3N battery. The battery of the controllers can be changed simply by using a coin.
Finish
With a newly assembled CLiQ controller, you can change the cadence on your AUTOMATiQ on the go. Enjoy your newly retrofitted bicycle!
