This guide will explain how to properly replace shifter cables on enviolo manual controllers.
Controllers factory cable length
Our controllers are delivered with 1.1 or 1.2 mm shift cables.
Step-by-step instructions
Video
Tools
- Small Philips screwdriver
- Small Flat screwdriver
Disassembly instructions
Remove the cable end hardware from both cables and remove the shift cables from the controller housing.
- Remove the Phillips screw on the bottom of the manual controller and remove the bottom cover by pulling lightly on the access tab.
- Pull the cables outside of the housing as far as possible.

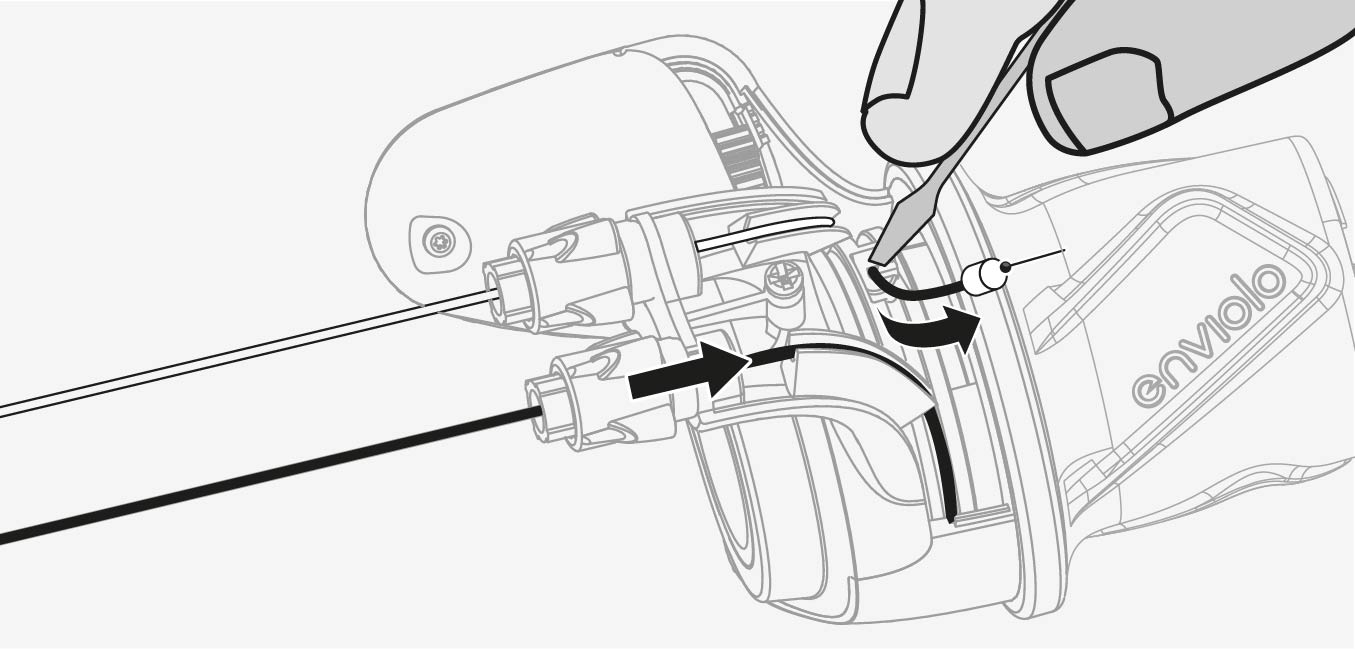

- In this way, you can try to fold and push using a small flat screwdriver or pointed object, extract the cable anchors, and shift cables from the grip pulley.
- Rotate the grip to access individual cable anchors.
Assembly instructions
Reassemble new cables, one by one:
- Install one shift cable, allowing the controller housing to guide the cable around the internals until it comes out on the other side.
- Guide the cable through the closest barrel adjuster.
- Guide the cable through the closest barrel adjuster.
- Pull the cable through the barrel adjuster until the cable anchor seats fully into the grip pulley.
- Rotate the grip to position the next cable for installation, and repeat steps 1 and 2.
- Reinstall the bottom cover and torque it to 0.2-0.3 Nm.
Done
If you have any questions don't hesitate to reach out to enviolo support.
