See how to properly assemble the CliQ Pure controller.

Step-by-step instructions

We recommend assembling on the right side of the handlebar

The CliQ Pure controller can be mounted on either side of the handlebar. In general, we recommend mounting on the right.

1 - Assemble the controller

Tools

• 3mm Allen wrench

Assembly instructions

To assemble the controller on the handlebar:

1. Assemble the hand grip – right or left – onto the handlebar, according to manufacturer instructions.
2. Slide the clamp over the handlebar.
3. Position the controller such that the button can be easily reached with the thumb, while riding.
4. Tighten it to 1.0-2.0 Nm with a 3mm Allen wrench.

2 - Configure the controller

The CliQ Pure buttons can be customised to rider preference:

Left-side assembly

For left-handed controller, with Enviolo logo facing left:

• Down button increases the cadence (easier pedal): Press and hold the lower and middle buttons for ~2 seconds until the LED turns red for 2 seconds.
• Down button decreases the cadence (harder pedal): Press and hold the upper and middle buttons for ~2 seconds, until the status LED turns green for 2 seconds.

Right-side assembly

For right-handed controller, with Enviolo logo facing right:

• Down button increases the cadence (easier pedal): Press and hold the upper and middle buttons for ~2 seconds until the LED turns green for 2 seconds.
• Down button decreases the cadence (harder pedal): Press and hold the lower and middle buttons for ~2 seconds until the LED turns red for 2 seconds.

3 - Pair the controller

Pairing instructions

1. Power on your drive system.
2. On the Automatic interface, push and hold the white button for ~3 seconds until it starts blinking blue, indicating that the interface is in pairing mode.

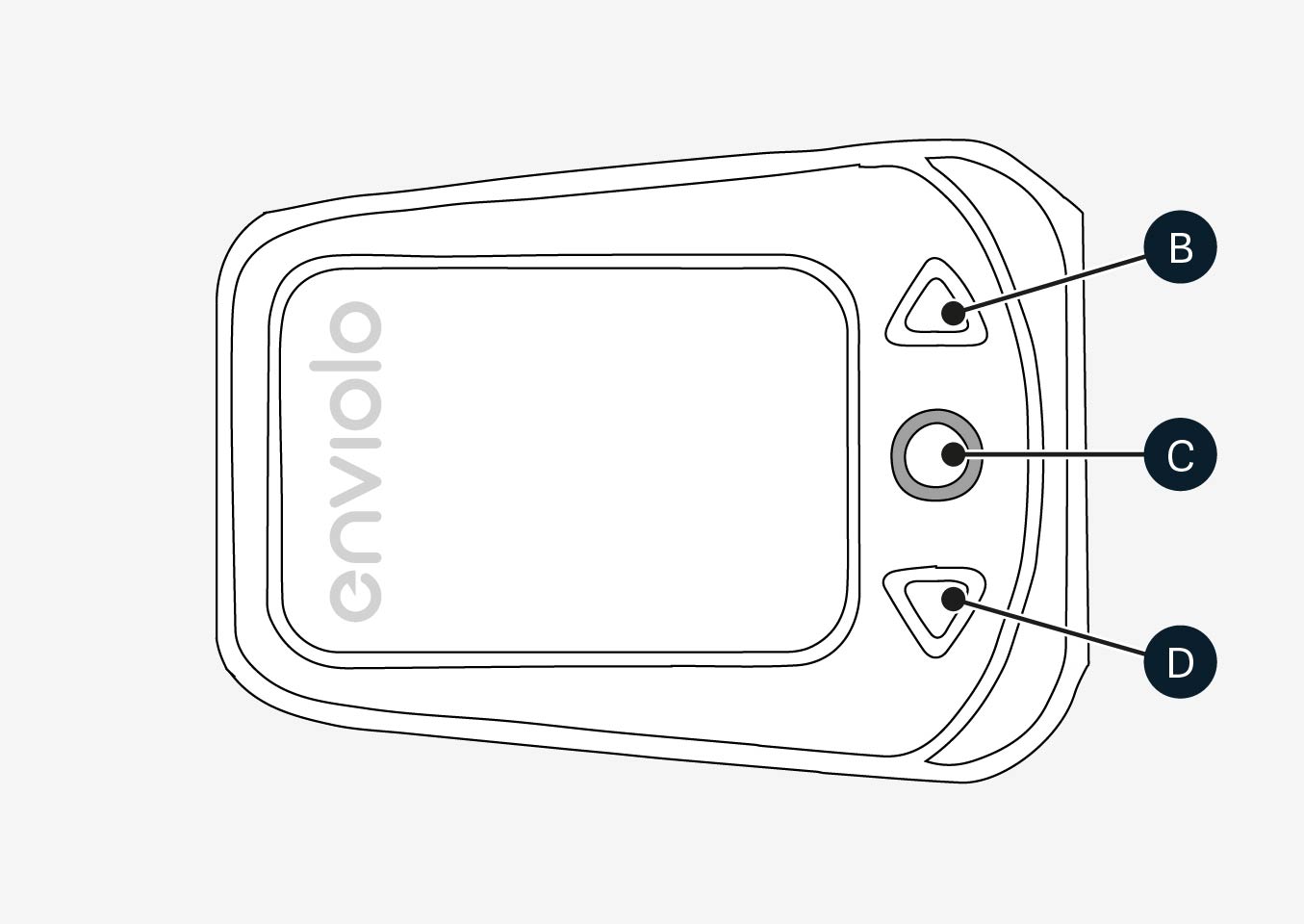

3. Turn on the controller, and press and hold the power button (C) until it starts blinking a red-green LED, indicating that the controller is in pairing mode.
   • If the controller doesn't turn on and needs a battery, use a coin and insert a CR2032.
4. The CliQ Plus should now pair with the Automatic interface.
   • When the controller LED starts blinking green only, then it's paired.
   • If the controller LED is still blinking red-green, then it's not connected and still searching for a connection.

Battery

The CliQ Pure uses a standard CR2032 battery. The battery can be changed by using a €0,50 coin.
