See how to properly assemble and pair the CliQ Pro controller.

Step-by-step instructions

We recommend assembling on the right side of the handlebar

The CliQ Pro controller can be mounted on either side of the handlebar. In general, we recommend mounting on the right.

1 - Assemble the controller

Tools

• Torx T20 wrench

Assembly instructions

1. Assemble the right-hand grip and brake lever onto the handlebar according to the manufacturer’s instructions.
2. Slide the clamp over the handlebar.
3. Position the controller such that the button is positioned slightly under and comfortable for thumb controls.
   • The enviolo CLiQ Pro controller can be mounted to either the right or left side of the handlebar.
4.  Tighten it to 1 Nm with a Torx T20.

2 - Pair the controller

Video

Pairing instructions

1. Power on your drive system.
2. On the Automatic interface, push and hold the white button for ~3 seconds until it starts blinking blue, indicating that the interface is in pairing mode.

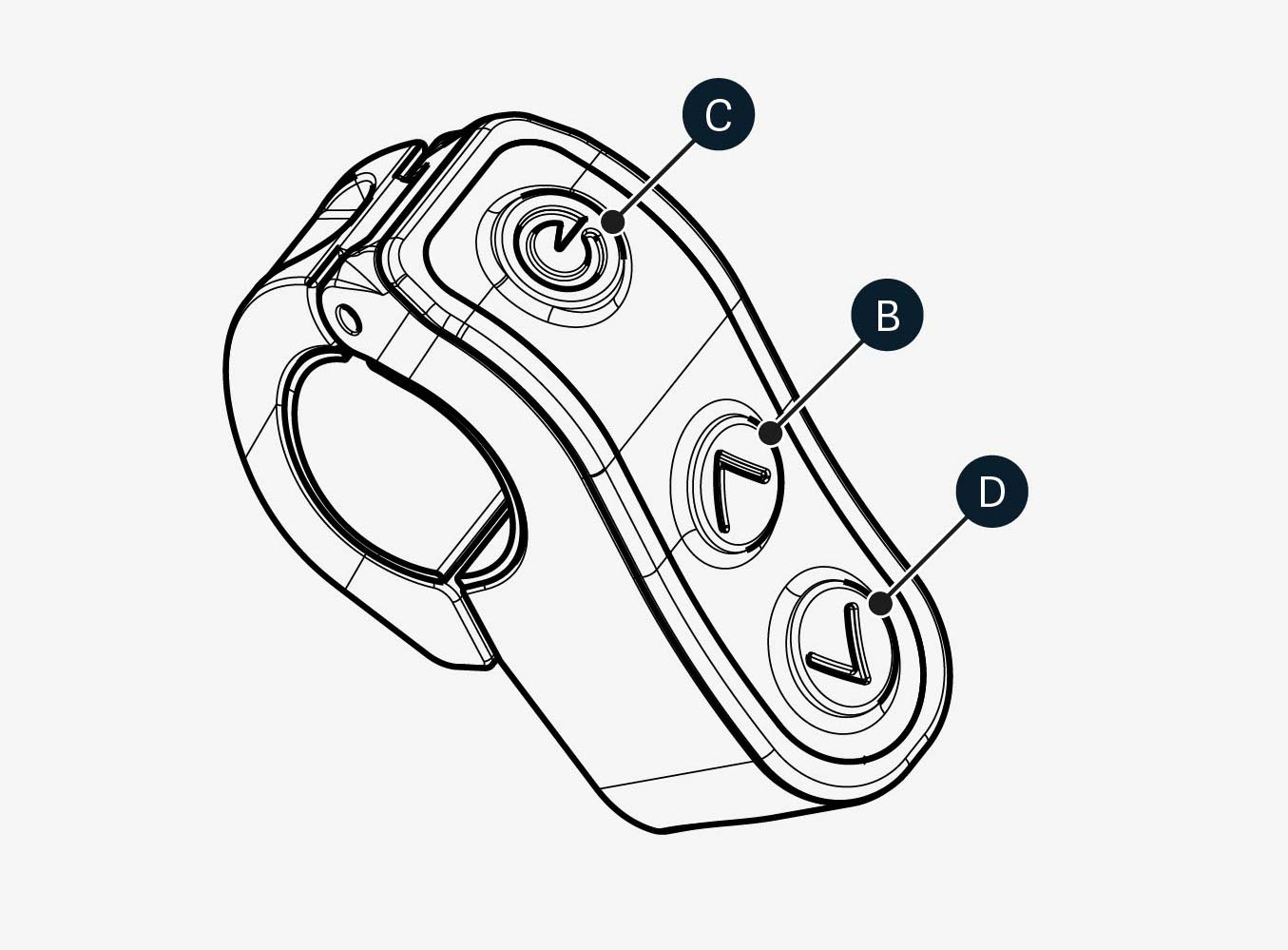

3. Turn on the controller, and press and hold the power button (C) until it starts blinking a blue LED, indicating that the controller is in pairing mode.
   • If the controller doesn't turn on and needs a battery, use a coin and insert a CR1/3N.
4. The CliQ Pro should now pair with the Automatic interface.
   • When the controller LED goes dark, then it's paired.
   • You can also confirm the connection if a white LED shows when pressing up (B) or down (D).
   • If the controller LED is still blinking, then it's not connected and still searching for a connection.

Battery

The CliQ Pro uses a standard CR1/3N battery. The battery can be changed by using a €0,50 coin.
