Below are the specs for different harnesses available for the AUTOMATiQ.

Wire harness options

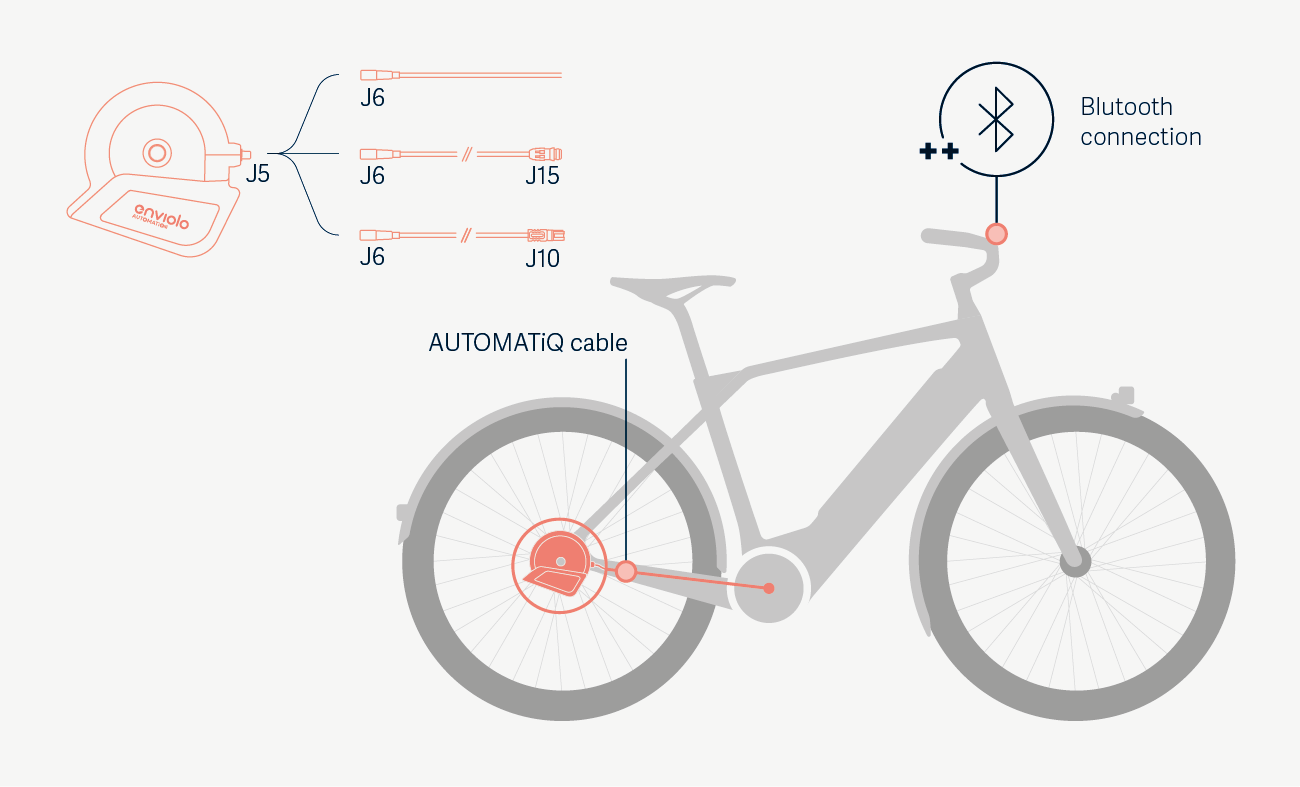

We offer 3 cable variants:

• J6 - Open-ended cable for custom solutions
  • WIRE-AT3-DS1K-OE (1000 mm)
• J6 - J15 BOSCH BES2 (Gen2, Gen3, and Gen4)
  • WIRE-AT3-400-OE (400 mm)
  • WIRE-AT3-600-OE (600 mm)
• J6 - J10 BOSCH BES3
  • WIRE-AT-600-OE-12V (600 mm)
  • WIRE-AT-800-OE-12V (800 mm)

Remember that other partners (e.g. Serial 1, FIT, Specialized) offer their own wire harness solutions.

J6 Open ended AUTOMATiQ cable

Cable specifications

WIRE-AT3-DS1K-OE

• eBike system compatibility - Any ebike system
• Cable length (with connector) - 1000 mm
• Cable diameter - 3.7 mm
• J6 connector diameter - 9 mm

J6 connector pinout

• Yellow - V_BAT
• Blue - GND
• Red - CAN_L
• Black - CAN_H

Voltage for custom solutions

When working on custom solutions, please take the following into that the input power for the latest AUTOMATiQ must be between 9.5 - 55V.

Warranty when using custom open-ended cables

Always consult local (country, state) warranty regulations first before using customized solutions. You may need approval from the engine manufacturer to avoid losing the engine’s warranty if you connect the AUTOMATiQ to the engine using a custom open-ended cable.

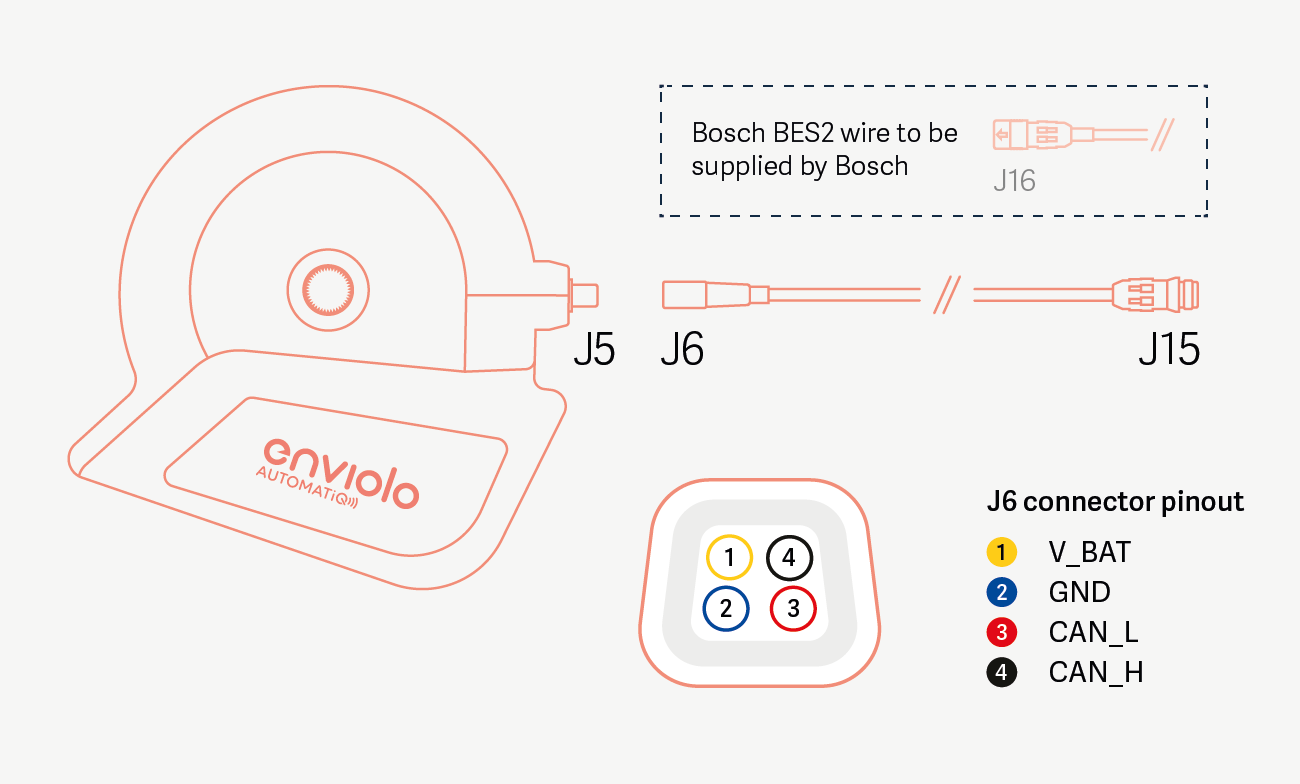

J6-J15 AUTOMATiQ cable for BOSCH BES2

Cable specifications

WIRE-AT3-400-OE

• eBike system compatibility - BOSCH BES2
• Cable length (with connector) - 400 mm
• Cable diameter - 3.7 m
• J6 connector diameter - 9 mm
• J15 connector diameter - 12 mm

WIRE-AT3-600-OE

• eBike system compatibility - BOSCH BES2
• Cable length (with connector) - 600 mm
• Cable diameter - 3.7 m
• J6 connector diameter - 9 mm
• J15 connector diameter - 12 mm

J6 connector pinout

• Yellow - V_BAT
• Blue - GND
• Red - CAN_L
• Black - CAN_H

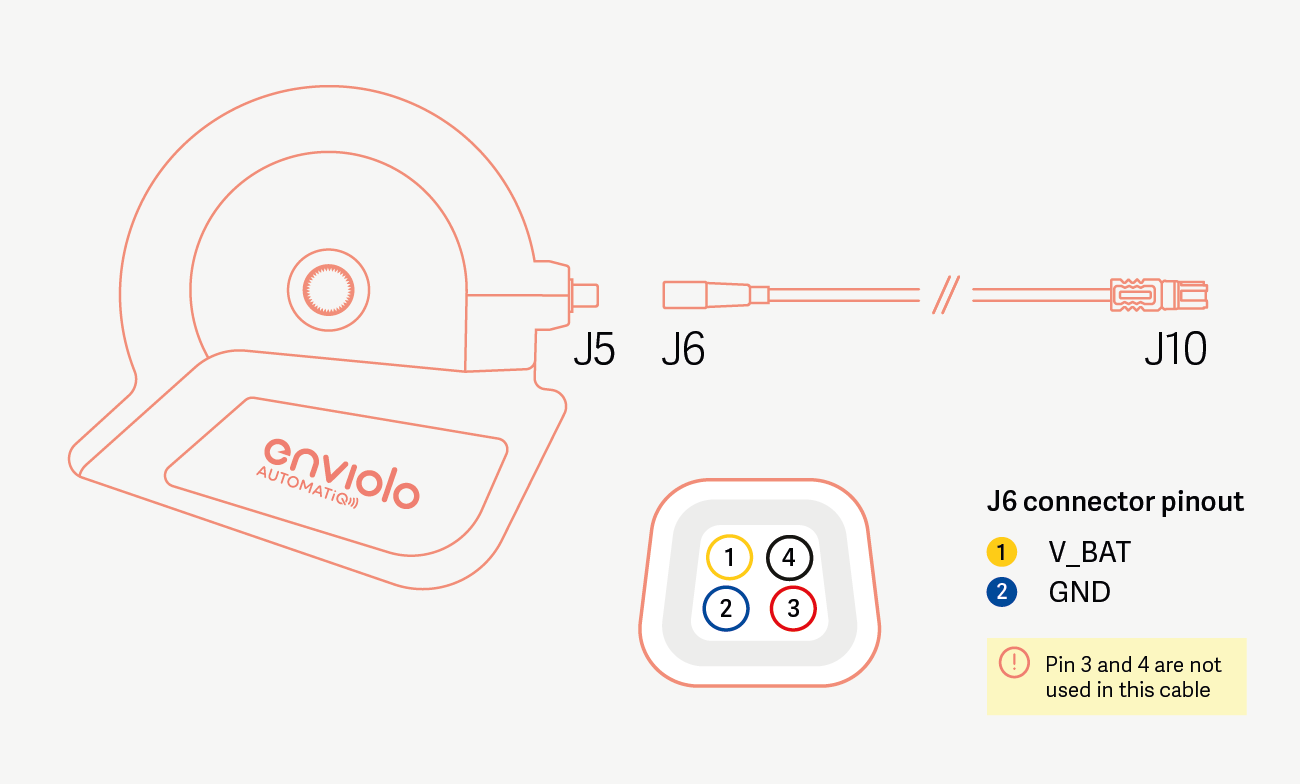

J6-J10 AUTOMATiQ cable for BOSCH BES3

Cable specifications

WIRE-AT3-600-OE-12V

• eBike system compatibility - BOSCH BES3
• Cable length (with connector) - 600 mm
• Cable diameter - 3.7 m
• J6 connector diameter - 9 mm
• J15 connector diameter - 12 mm

WIRE-AT3-800-OE-12V

• eBike system compatibility - BOSCH BES2
• Cable length (with connector) - 800 mm
• Cable diameter - 3.7 m
• J6 connector diameter - 9 mm
• HPP (J10) connector diameter - 12 mm

J6 connector pinout

• Yellow - V_BAT
• Blue - GND
