This guide explains how to assemble a rear wheel with a Manual hub interface and solid axle hub onto a 135mm bike frame.
Backward compatibility
This guide is compatible with legacy enviolo and NuVinci 135mm solid axle hubs.
Exercise caution when assembling the no-turn washers
Improper installation of the no-turn washers may result in damage to the dropout and the hub. Over-tightening may damage parts. Under-tightening can result in the axle sliding in the dropouts.
Video instructions
Step-by-step instructions
Tools
- 15mm wrench
- Torque wrench
- 15mm long socket
- 17mm long socket (only for Extreme hub)
Assembly instructions
- Place the rear wheel into the rear frame, making sure not to obstruct shift cables.

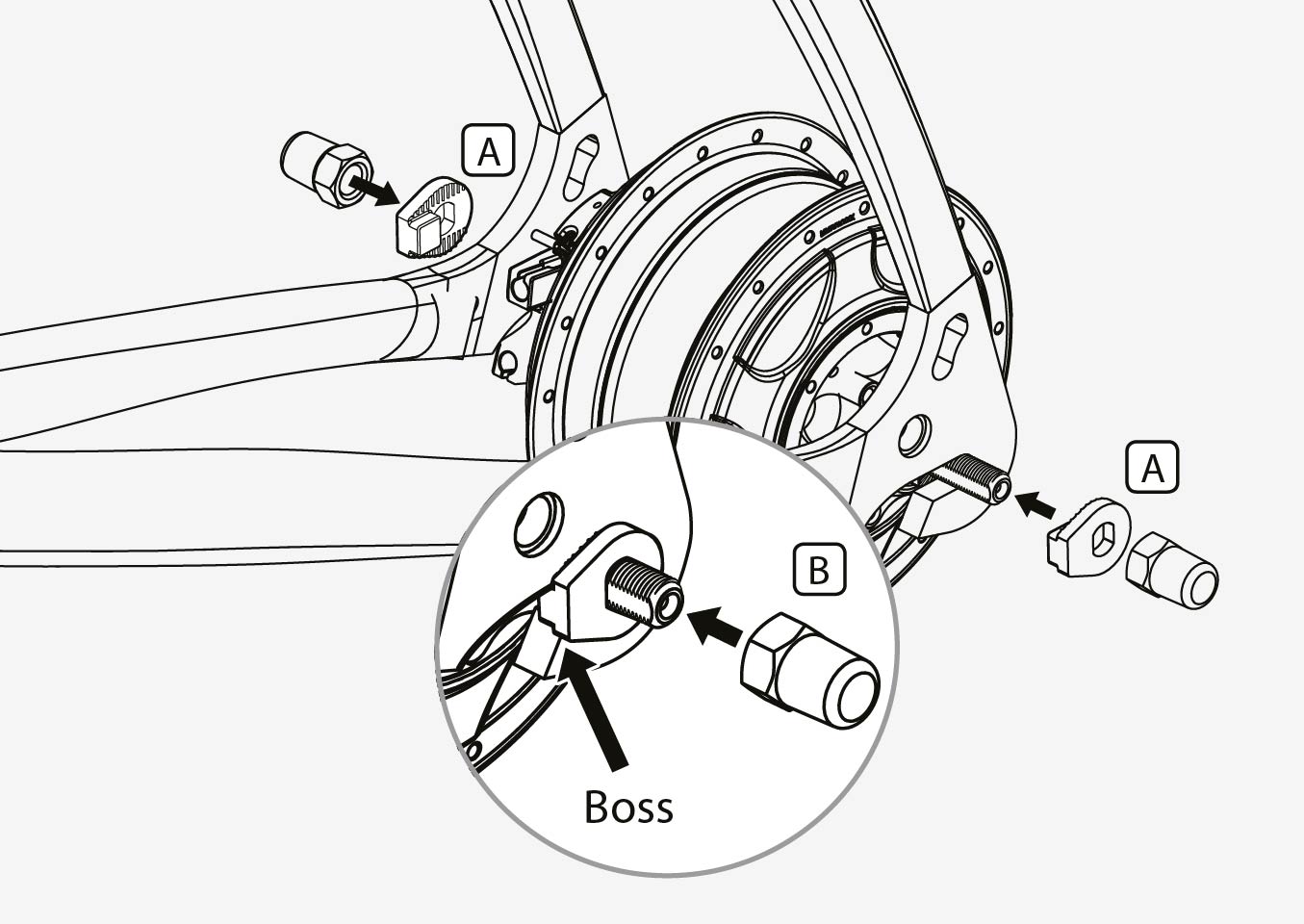

- Slide a non-turn washer (A) onto each axle end.
- The serrations of the non-turn washer must bear against the dropout of the frame.
- The rectangular boss must engage in the dropout of the frame.
- Mount the axle nuts (B) and tighten them to 30-40Nm.
Your wheel is assembled
If you followed the steps above, your wheel is now assembled on the bike.
Next, you may want to assemble the controller or the cable. If you have already done that, then your bike is ready to go.
